name |

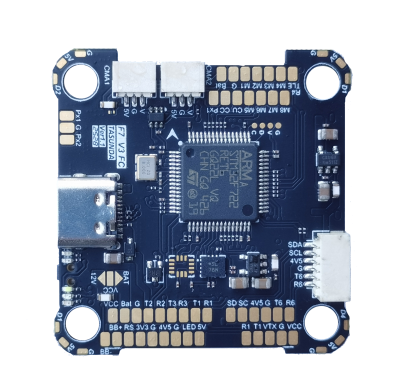

F722 V3 flight controller |
|
master controller |
STM32F722RET6 |
|
gyroscope |
ICM42688/BMI270 |
|
USB interface type |
Type-C |
|
barometer |
SPL06-001 |
|
OSD Chip |
AT7456E |
|
Black Box |
16M |
|

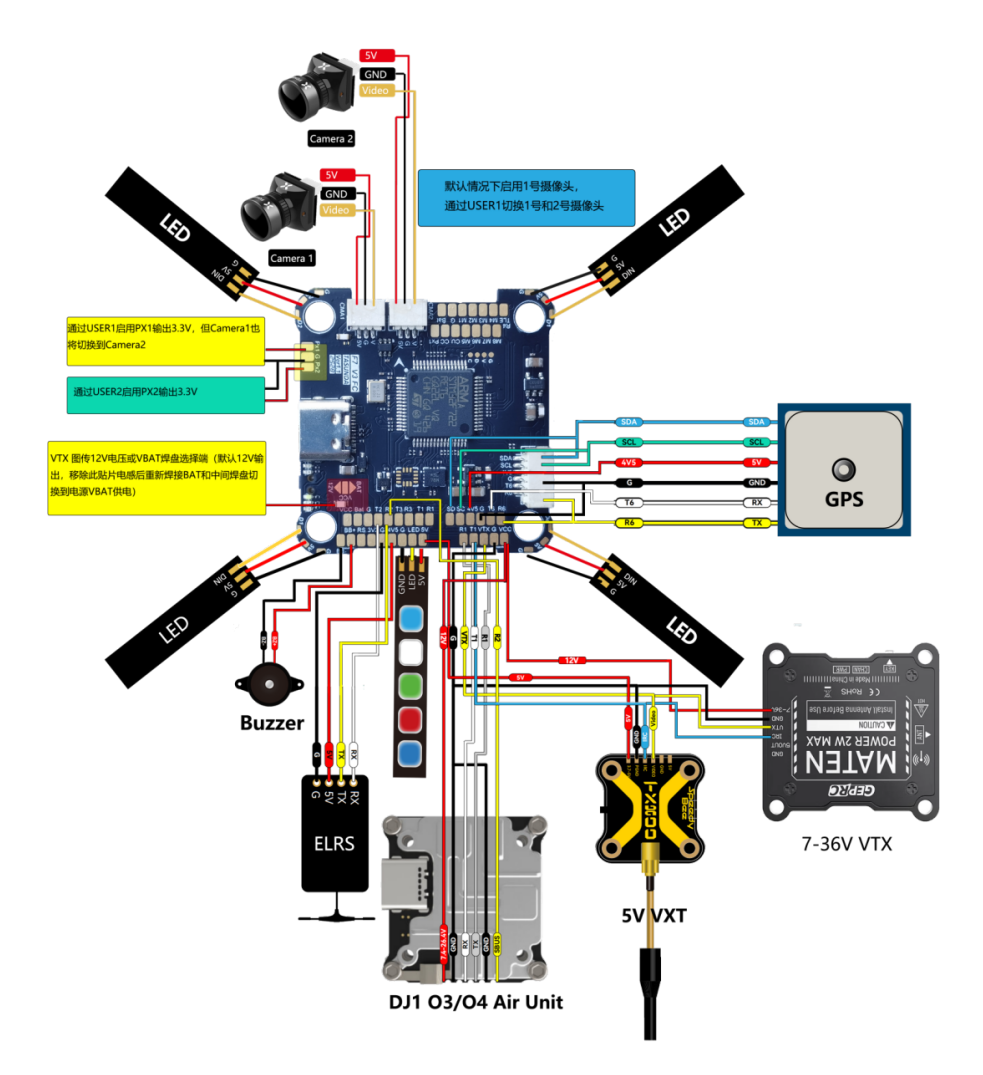

DJI Air Unit Verbindungsart |
Supports both direct plug-in and soldered wire connection methods for 6-pin sockets. |
|
6-pin DJI Sky-End-Steckdose |
Supported. Fully compatible with DJIO3/RunCam Link/Caddx Vista/DJIAir Unit V1, no need to change any wiring. |
|
Eingangsspannung |
3S - 8S lithium battery (power the flight controller via the G and Bat lines of the 8-pin ribbon cable on the back of the flight controller or the G and Bat pads on the back of the flight controller) |
|
Elektrisches Steuersignalkabel |
The first block is M1-M4, and the second block is M5-M8. |
|
RC IN |
CRSF/SUBS |
|
UART |
6 groups |
|
Amperemeter |
YES |
|
BEC Ausgabe |
4.5V/500ma、 5V/2A 、12V/2A |
|
Unterstützte Flugsteuerungs-Firmware-Typen |
BetaFlight(Default factory firmware )、Optional INAV firmware |
|

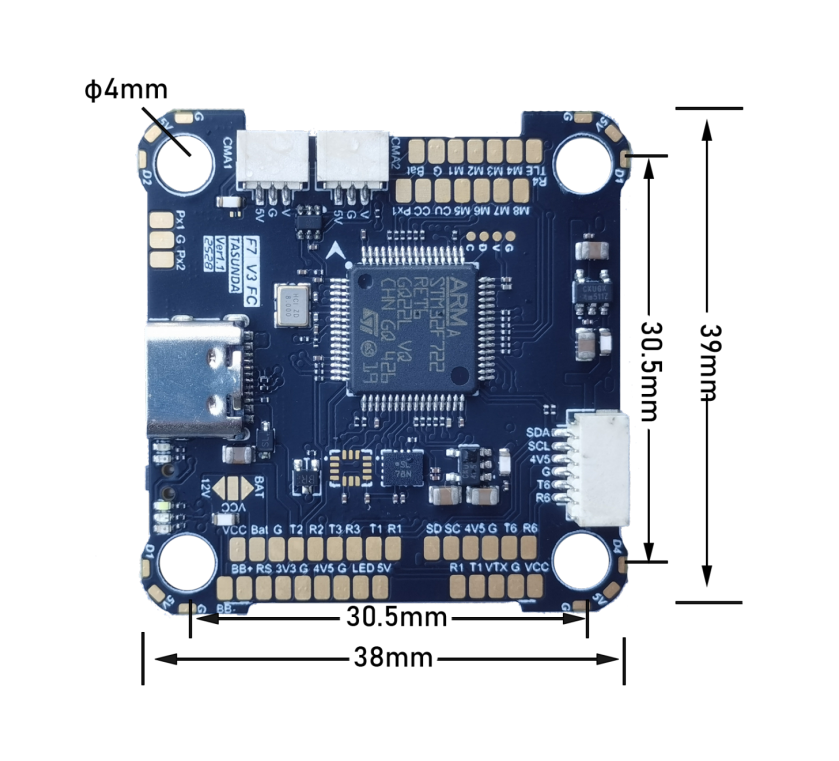

Abmessungen |
39mm（L） *38mm（W） *8.4mm（H） |
|
Montageabstand |
30.5mmx 30.5mmx 4mm |
|
Gewicht |
9.5g |
