110A 4in1 ESC-china fpv flight control factory

Shenzhen.China
fpvflight01@gmail.com
+86133-8088-9735

110A 4in1 ESC

110A 4in1 ESC Appearance Description：

Product Name :4IN1-ESC-110A(Firmware):AM32（Assistant software）:https://am32.ca/configurator(Input voltage):3-8S LiPoz(10-35.2V)(Continuous current):110A /channel(Maximum current)10S:120A in 10 seconds(Electrical modulation protocol):Dshot300, Dshot600、PWM(SIZE):56mm*51*6mm

Specifications：

110A 4in1 ESC

Product Name :4IN1-ESC-110A

(Firmware):AM32

（Assistant software）:https://am32.ca/configurator

(Input voltage):3-8S LiPoz(10-35.2V)

(Continuous current):110A /channel

(Maximum current)10S:120A in 10 seconds

(Electrical modulation protocol):Dshot300, Dshot600、PWM

(SIZE):56mm*51*6mm

(Hole spacing):30.5mm-30.5mm ⌀4mm

(Electric current meter):YES

(TVS):YES

(Weight):30.6g

Dimensions:

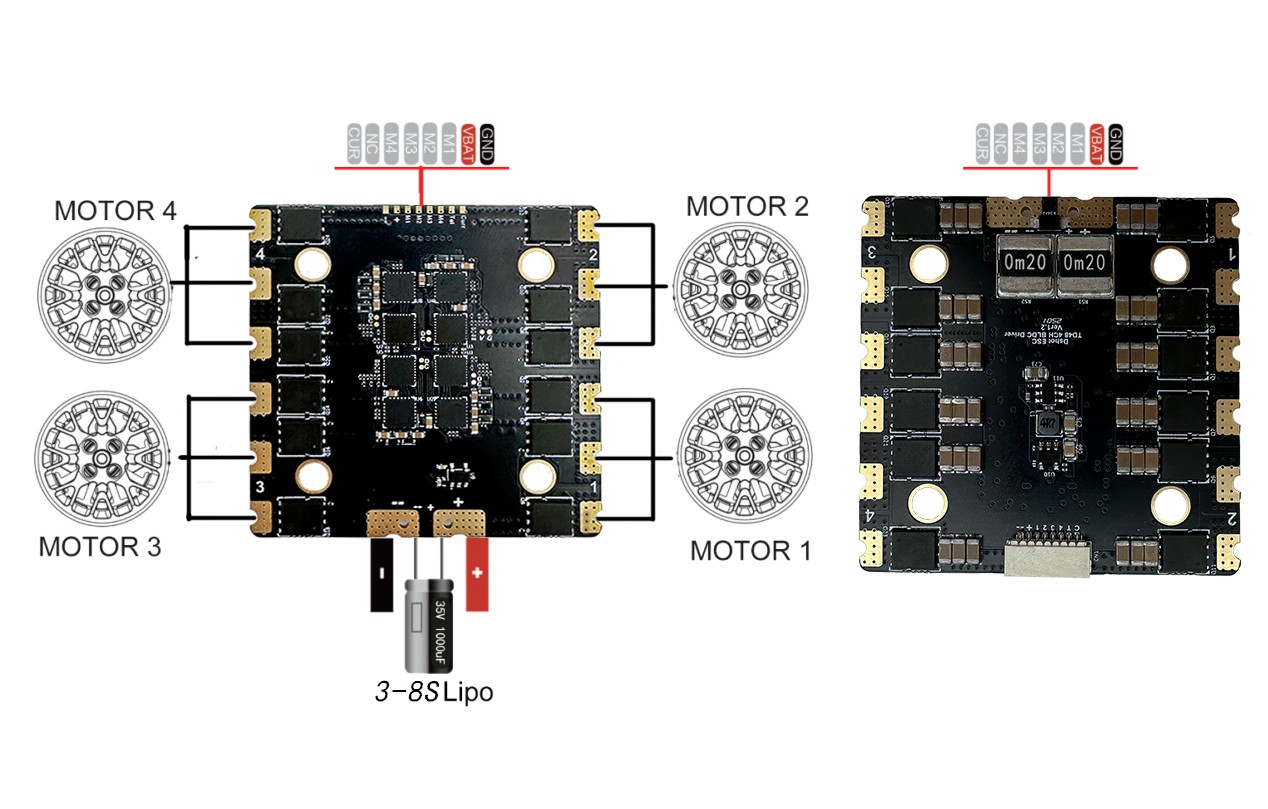

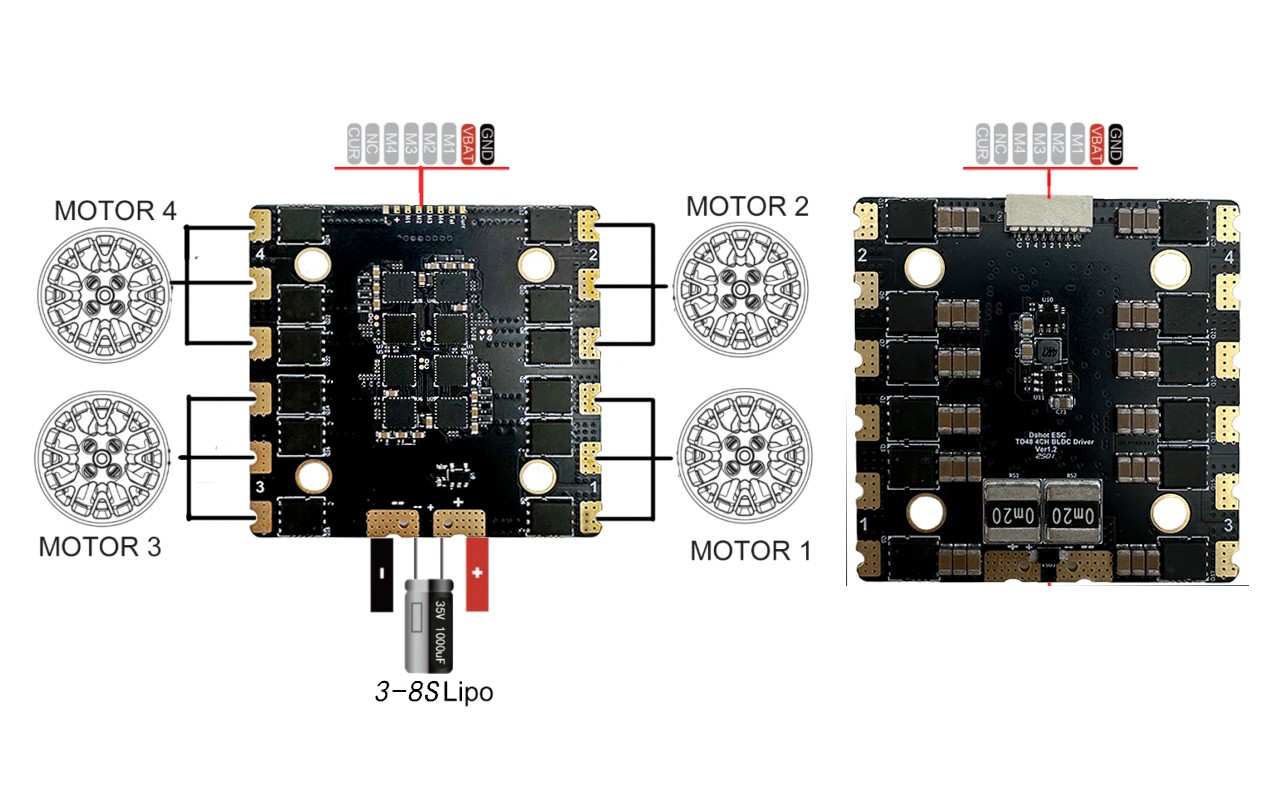

Wiring diagram:

Package：

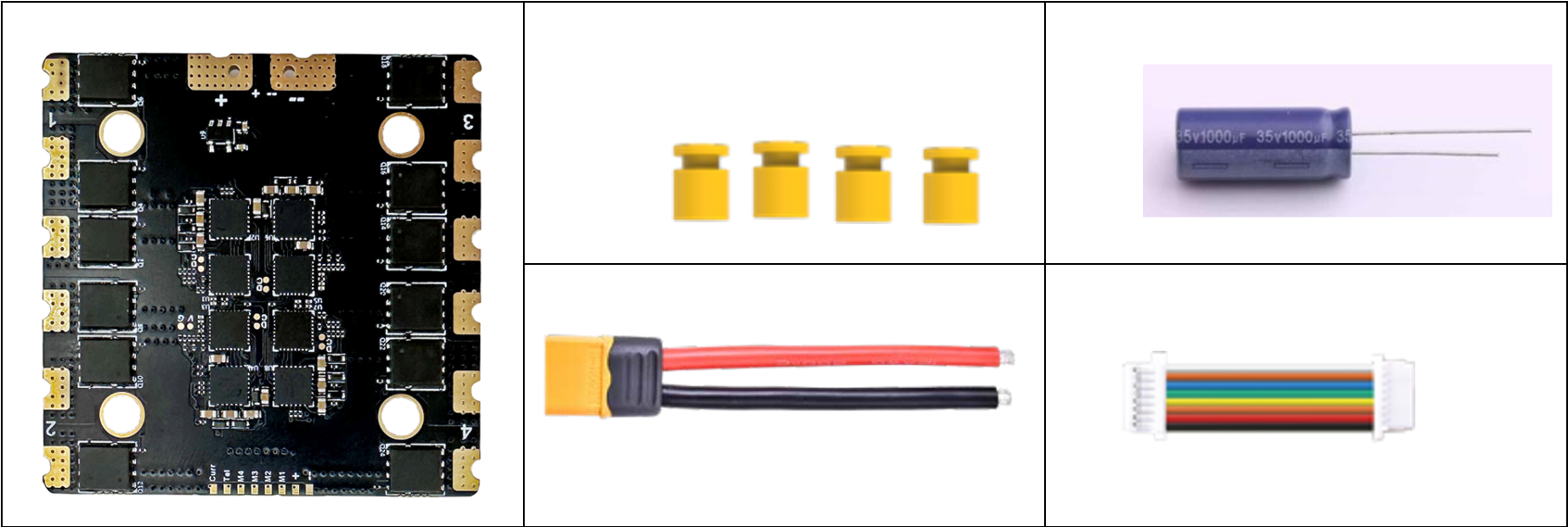

Packing list：

❶ 110A 4in1 ESC*1

❷ M3 Shock Absorbing Ball*4

❸ XT60 power cord*1,

❹ Capacitance(50V1000UF)*1,

❺ 8P sh1.0 line*1,
